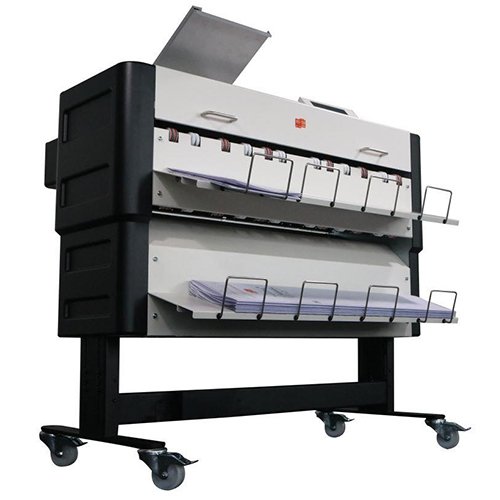

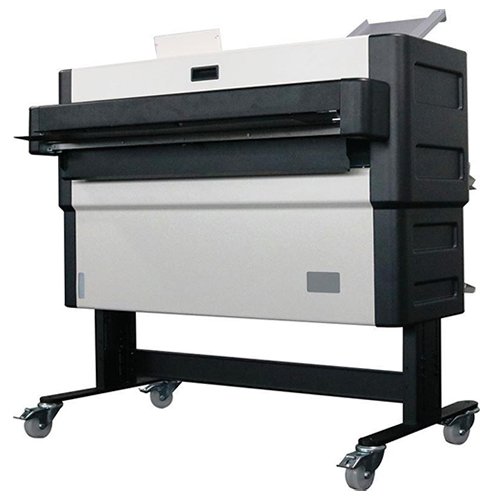

Es-Te Estefold 3001

Online Folding – light & handy.

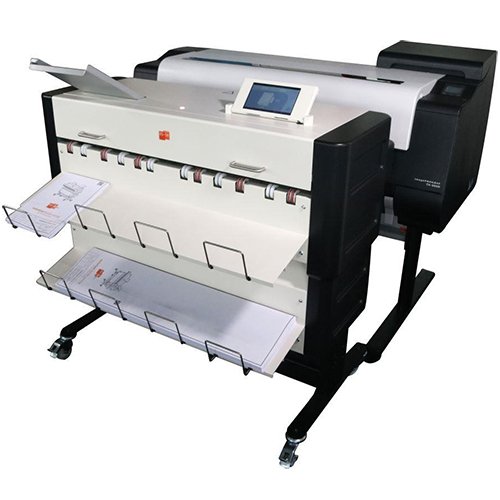

The document to be folded is directly transferred from the respective printer to the estefold 3001.
According to the selected fold program, the fan fold is carried out automatically & precisely.
For the subsequent cross fold, the fan folded document must be fed in manually via the cross fold rail.
The then finished crisp fold package may be obtained easily from the lower or upper collecting tray, depending on the number of cross folds.

The estefold 3001, let´s you create perfect folds.

Features:
combines standard-setting technology, comfort and smart design in what might just be the most compact fold device ever.

All proven & appreciated advantages like:

• Easy installation, thanks to a complete “plug & fold” factory assembly.
• Unmatched flexibility, thanks to “millimeter-increment” adjustability.
• ES-TE quality, durability and long life.
• So quiet that it is even certified for use in living rooms.
• The estefold 3001 is best suited for low to mid volume printers.

Technische data:

• Waaiervouw: Automatisch
• Kruisvouw: Handmatig
• Waaiervouw (max.): 29 lagen
• Waaier & kruisvouw (max.): 6 lagen
• Document breedte: 297 – 930 mm
• Document gewicht: 60 – 110 g/m²
• Paneelbreedte waaiervouw: 170 – 230 mm
• Paneelbreedte kruisvouw: 250 – 320 mm
• Marge: 0 – 40 mm
• Aanwezig aantal vouw programma’s: 45
• Vouw standaard: DIN 824, AFNOR,ANSI a.o.
• Machine gewicht: 130 kg
• Machine afmetingen L x W x H: 1158 x 725 x 1006 – 1341 mm
