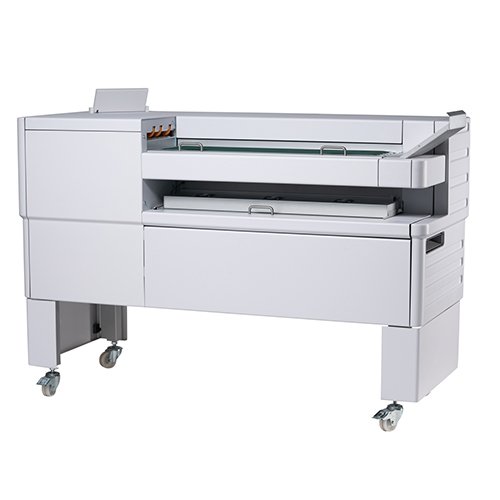

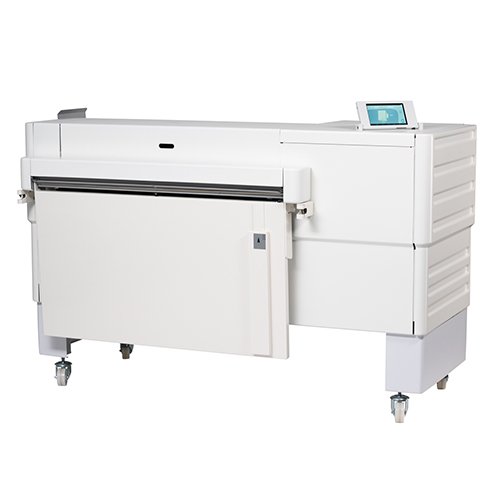

Es-Te Estefold 3010
The New Standard.
Processing ten DIN A0 drawings per minute is easy, even for inexperienced users.
Longitudinal and transverse folding are carried out with highest precision & consistent accuracy, in one step.
Selected fold style or possible malfunctions are presented graphically on an all new 7 “Android tablet display.
This appealing & intuative GUI also allows for the easiest & most flexible customization of folding styles.
Finished, sharp-edged folding packages are ejected face up at an ergonomic height.
Features:
Combines standard-setting technology, comfort and smart design in what might just be the most compact full-fold device ever.
All proven & appreciated advantages like:
- Easy installation, thanks to a complete “plug & fold” factory assembly.
- Unmatched flexibility, thanks to “millimeter-increment” adjustability.
- ES-TE quality, durability and long life.
- So quiet that it is even certified for use in living rooms.
Technische data:
- Gebruikersomgeving (GUI): 7″ Android tablet
- Printmedia voeden: Handmatig (1 staps)
- Snelheid: Tot max 14 A0 per minuut
- Aantal vouw programma’s: 45 – bewerkbare
- Vouw stijlen: DIN A,B,C & Freestyle
- Transportcapaciteit: tot maximaal 80 A0
- Paneel met waaiervouw: 170 – 230 mm
- Paneel met kruisvouw: 250 – 320 mm
- Marge: 0 – 40 mm
- Alleen waaiervouw (max.): 28 laags (80 g/m²)
- Waaiervouw & kruisvouw (max.): 17 laags (80 g/m²)
- Document breedte: 297 – 914 mm
- Document gewicht: 60 – 110 g/m²
- Machine gewicht: 247 kg
- Machine afmetingen L x W x H: 1845 x 1465 x 1200 mm
