Beschrijving

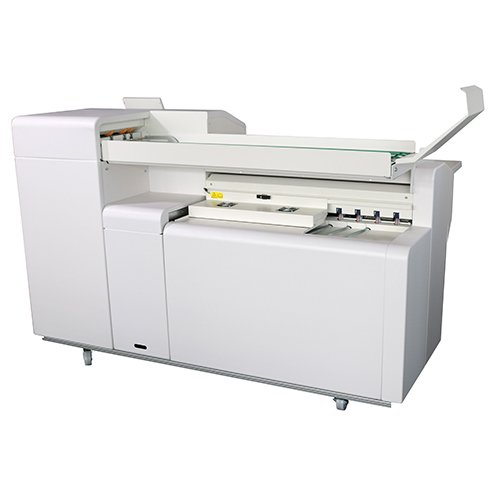

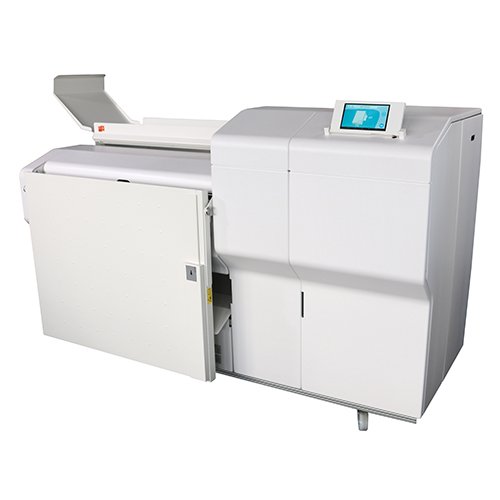

Es-Te Estefold 6010
The New Premium.
Processing ten DIN A0 drawings per minute is easy, even for inexperienced users.
Fan- and crossfold are carried out with highest precision & consistent accuracy, in one step.
Selected folding style or possible disturbances are presented graphically in an all new 7 “Android tablet display.
This appealing & intuative GUI also allows for the easiest & most flexible custimization of folding styles.
Finished, sharp-edged folding packages are ejected face up at an ergonomic height.
Features:
Combines cutting-edge technology, comfort and smart design in what might just be the most potent full-fold device ever.
In addition to its sophisticated design and tough build estefold 6010 shows off with the potential to integrate intelligent, optional features such as:
- Tab Applicatior.
- Endless-Folding.
- Map-Folding.
Technische data:
- Gebruikersomgeving (GUI): 7″ Android tablet
- Printmedia voeden: Handmatig (1 staps)
- Snelheid: Tot max 14 A0 per minuut
- Aantal vouw programma’s: 45 – bewerkbare
- Vouw stijlen: DIN A,B,C & Freestyle
- Transportcapaciteit: tot maximaal 80 A0
- Paneel met waaiervouw: 170 – 305 mm (opt. 100 – 305)
- Paneel met kruisvouw: 250 – 320 mm
- Marge: 0 – 40 mm
- Alleen waaiervouw (max.): 28 laags (80 g/m²) (opt. eindeloos)
- Waaiervouw & kruisvouw (max.): 12 laags (80 g/m²)
- Document breedte: 297 – 914 mm
- Machine gewicht: 306 kg (zonder TAB)
- Machine afmetingen L x W x H: 1850 x 1634 x 1227 mm
